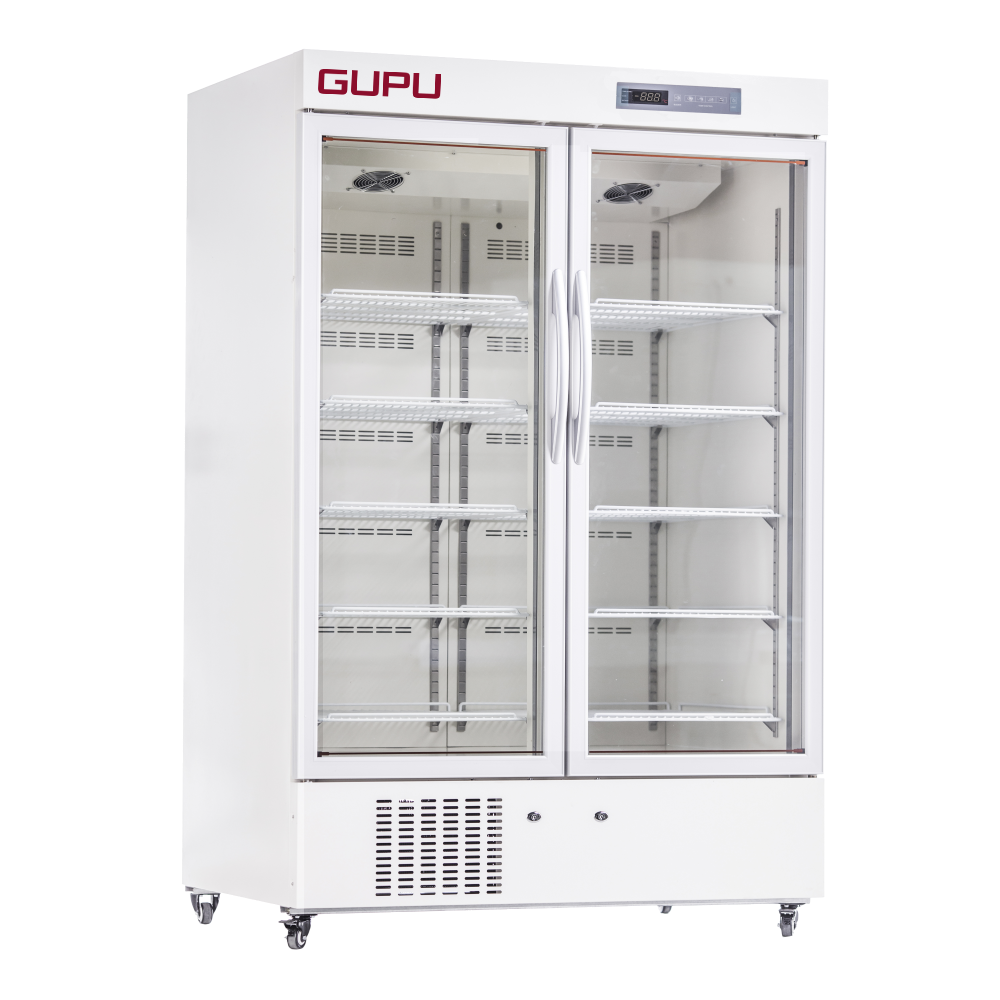

Double Door Pharmacy/Medical Refrigerator 1000L

CERTIFICATES:ISO, CE

WARRANTY:3years

MOQ:1unit

CHARACTERISTICS

ModelGPR-S75GGPR-S125GGPR-S230GPR-S320GPR-S410GPR-D680GPR-D1000GPR-T1550
Size
Capacity(L/cu.ft)75\2.11125\4.42230\8.12320\11.12410\14.69680\241000\35.311550\54.74
Standard Shelf/drawer
APS: Anti-corrosion Painted Steel
SS: Stainless Steel
APS Shelves/2APS Shelves/3APS Shelves/4APS Shelves/5APS Shelves/5APS Shelves/10APS Shelves/10SS Shelves/12
Exterior Size(W*D*H)(mm)480*450*535500*503*1292580*560*1785640*582*1880780*580*19201220*642*18851220*872*18851800*775*1965
Interior Size(W*D*H)(mm)400*415*447418*390*761500*420*1090540*425*1380685*429*13801100*454*13251100*684*13251680*640*1420
Package Size(W*D*H)(mm)555*505*610575*580*1365730*675*1915710*655*1960880*640*21001335*715*20501330*940*19701910*855*2155
NT./GT.(kg)22/2453/57563/6592.5/100120/133158/188207/237170/190
CBM0.170.460.940.911.181.962.463.52
Performance
Temperature Range2-8℃
Temperature Accuracy0.1℃
Temperature Vibration±3℃
Climate/ Ambient TemperatureSN (10-32℃)
Noise(db)5047.5465050525355
Refrigeration System
RefrigerantR600aR600aR134aR600aR600aR600aR600aR134a
CoolingForced-air cooling
DefrostAuto
Compressor Brand/QtyCHINA BRAND/1SECOP/1
InsulationPURF
Control System
Temperature ControllerMicroprocessor
SensorNTC
DisplayDigital LED display









Power
Voltage Frequency(V/Hz)220V±10%, 50Hz/60Hz; 110V/60Hz
Power Consumption(kWh/24h)1.21.652.561.645.755.756.238
Power(W)87W150W254W226W175W310310W1110W
Current(A)0.62A0.81.151.031.261.71.753.8
Construction
Inside MaterialAnti-corrosion painted steelStainless steel
Outside MaterialAnti-corrosion painted steelStainless steel
Outer Door Glass
(Low-E: Excellent insulation and good light transmission)
1/Double glazed insulated LOW-E toughened glass doors2/Transparent glass door with sealing joint strip with automatic rebound.
Heating film prevents frost
3/Double glazed
insulated LOW-E toughened glass doors
Foot or CasterFootFootCaster & FootCaster & FootCaster & FootCasterCasterCaster
Audible and Visual Alarms
High/Low TemperatureStandard
Power failureStandard
Thermostat failureStandard
Door ajarStandard
Accessories
LampLED
Power failure backup system(alarm)8h
Door Lock11111223
Test Hole QTY/diameter1/25MMOptionalOptional1/25MM1/25MM1/25MM1/25MMOptional
USB portOptional/
Temperature RecorderOptional
Remote alarm portOptional
RS232/485/ portOptional


DESCRIPTION

Application:

The pharmacy refrigerators are suitable for refrigeration storage solution drug stores,pharmaceutical companies,hospitals,epidemic prevention centers and clinics.


Features:

* Double transparent glass door with sealing joint strip with automatic rebound.

* Heating film prevents frost

* Internal and external is anti-corrosion painted steel

* Standard test hole 25mm

* LED lamp
