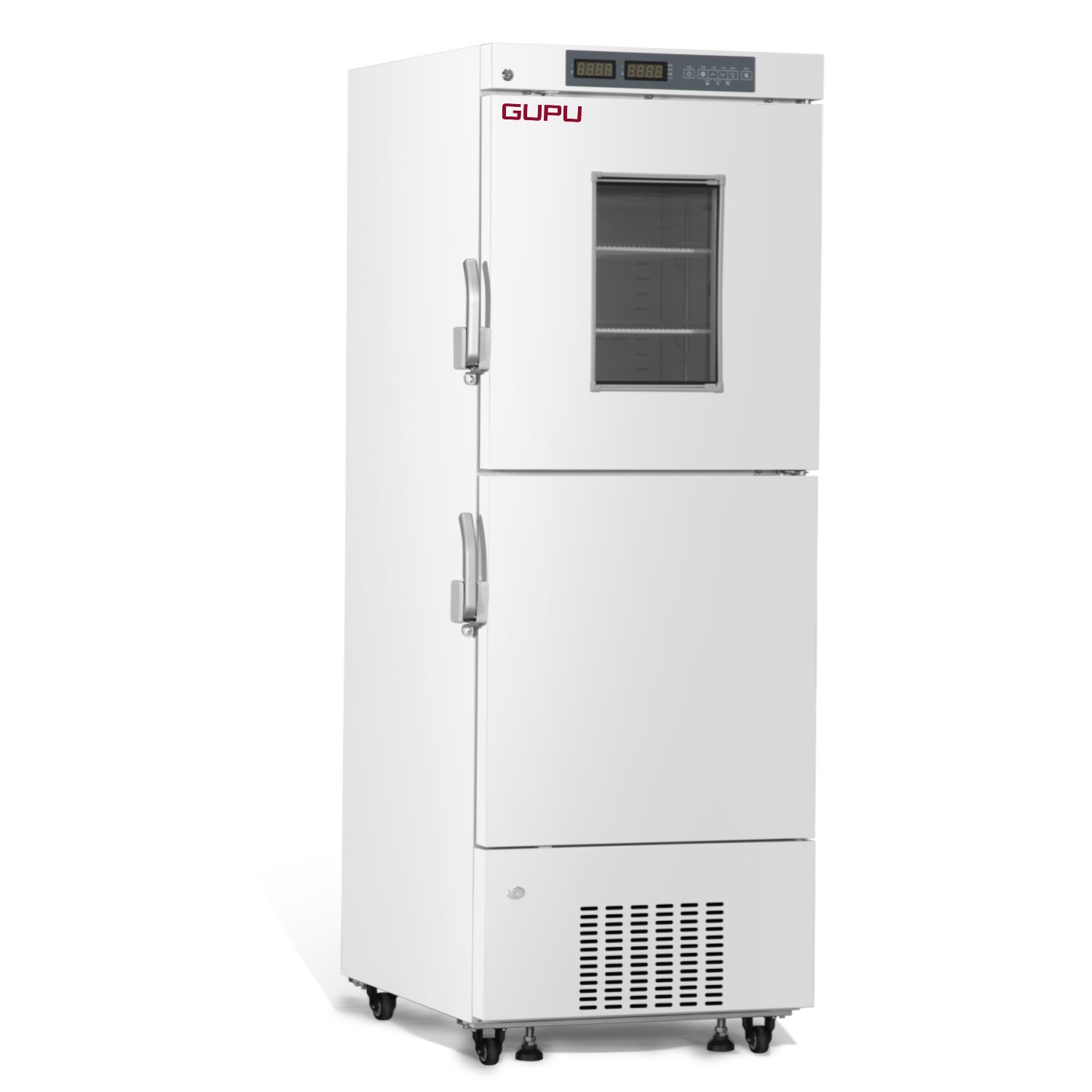

Double Door Freezer 450L (-25℃/-40℃)

CERTIFICATES:ISO, CE

WARRANTY:3years

MOQ:1unit

CHARACTERISTICS

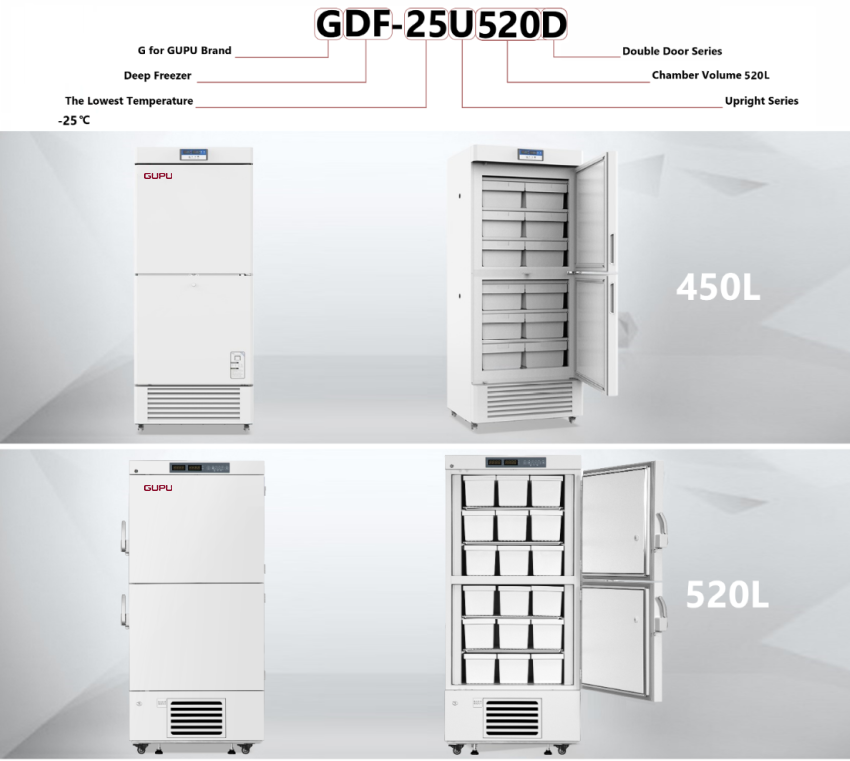

Double Door Freezer 450L (-25℃/-40℃)(图1)

DESCRIPTION

Series-40℃ Double Door Series-25℃ Double Door Series
ModelGDF-40U450DGDF-40U520DGDF-25U450DGDF-25C520D
Volume (L/cu.ft.)450/15.89520/18.36450/15.89520/18.36
Shelves or Drawers Qty6*2(ABS)Shelves, Drawers6*2(ABS)Shelves, Drawers
Chamber Size (mm)(650*570*627)*2(651*632*635)*2(650*570*627)*2(651*632*635)*2
Outer Size (mm)810*735*1960910*845*1875810*735*1960910*845*1875
Package Size (mm)945*870*2175930*970*2000895*820*2035930*970*2000
Net Weight/Gross Weight (kg)144/156151/184136/148151/184
CBM1.81.81.51.8
20GP/40GP/40HQ12/26/2612/24/2414/28/2812/24/24
Performance

Temperature Control Range-20~-40℃-20~-40℃-10~-25℃-10~-25℃
Climate ClassN (16-32℃)SN (10~32℃)N (16-32℃)SN (10~32℃)
Control

ControllerMicroprocessor
DisplayDual InDependent LED Digital Display
Temperature SensorPT100NTCPT100NTC
Refrigeration

Refrigeration SystemDirect cooling methodDirect cooling method
Direct cooling
Compressors2CUBIGEL/22SECOP/2
CondenserCopper tube
RefrigerantR290R290R600aR290
Insulation Material and ThicknessPURF, 80mmPURFPURF, 80mmPURF
Construction

Outer MaterialPainted Steel
Chamber MaterialPainted luminum plate
Outer DoorFoam, Sealing joint strip
Outer Door LockSafety door lock and
Test Port Qty & Diameter2pcs. Ø 25 mm
Casters4(2 caster with brake)
Audiable and Visual Alarms

High & Low TemperatureYYYY
Extremely High AmbientY/Y/
Thermostat FailureYYYY
Sensor ErrorYYYY
Abnormal VoltageY/Y/
Power FailureYYYY
Low BatteryY/Y/
USB Datalog FailureY/Y/
Condenser CleanY/Y/
Door OpenY/Y/
Romote AlarmOptionalYOptionalY
Electrical and Noise Level

Power Supply220V/50/60HZ, 110V/60Hz
Rated Current(A)3.853.41.91.7
Input Power340W340W840W
Power Consumption (KWh/24hr)5.0316.52.24?
Noise Level52535253
Options

USB/Printer/RS485/RS232Printer,RS485,RS232
USB/10 minute for 2 years
USBPrinter,RS485,RS232
USB/10 minute for 2 years
USB
Data LoggerOptional
Power Failure Backup Battery8h
CO2 or LN2 Back-upOptional
