Product Gallery

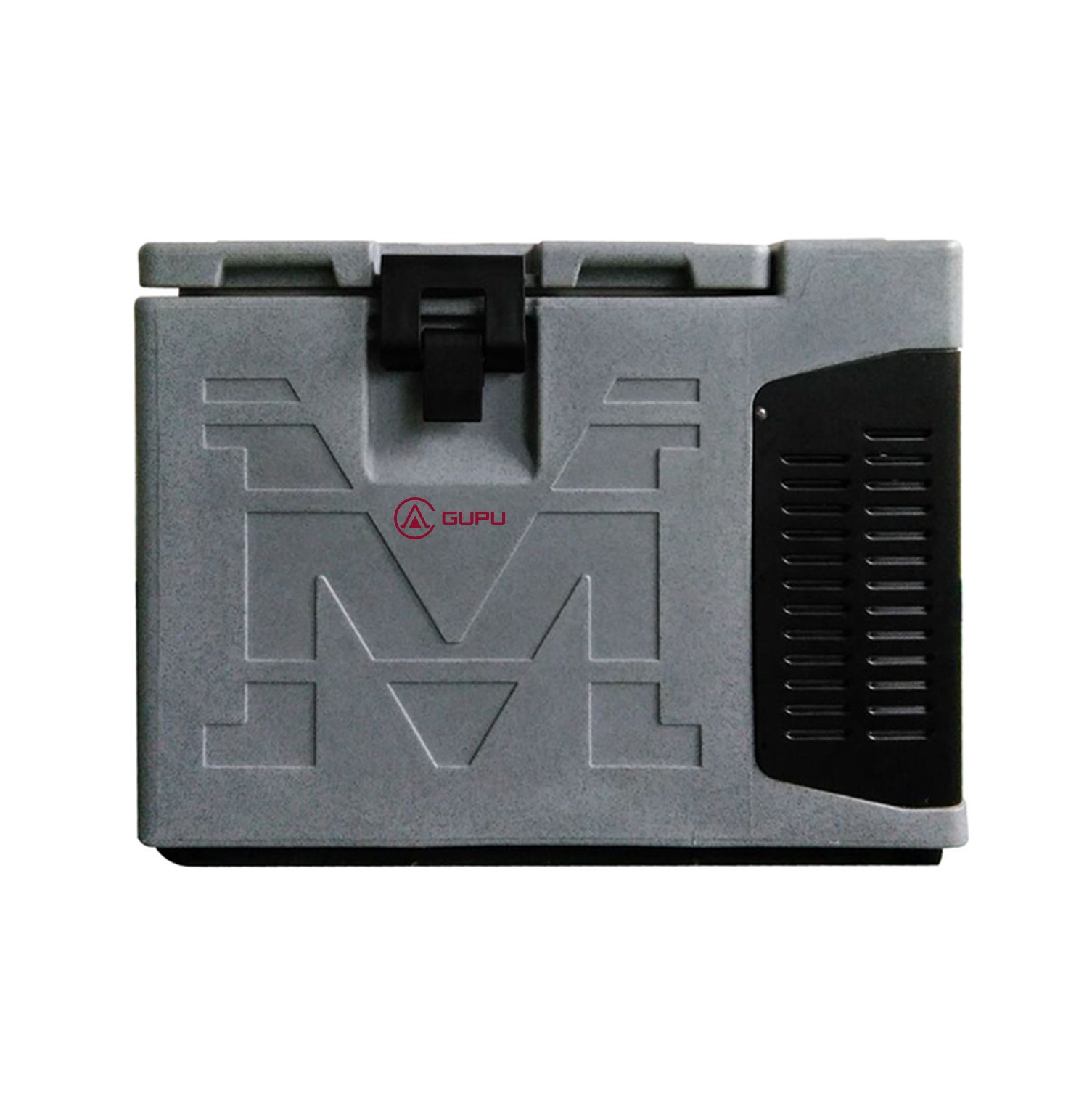

Nevera/ Congelador/ Incubadora móvil para coche 30L

CERTIFICATES:ISO, CE

WARRANTY:3years

MOQ:1unit

Características

ModelGDF-25C30MGDF-25C80MGBR-4C700M
Technical Data
Type-25 Mobile Cooler-25 Mobile Cooler4°C Mobile Cooler
Cabinet TypeChestChestChest
Climate ClassNNN
Cooling TypeForced Air CoolingForced Air CoolingForced Air Cooling
Defrost ModeManualManualNo frost with heated glass door
RefrigerantR134aR134aR134a
Dimensions
Shelves/BasketBasket around EvaporatorBlood Baskets
Capacity(L)3080700
Internal Size(W*D*H)mm364×253×352.5547×378×369.5939×973×863
External Size(W*D*H)mm615×370×471.5937×565×580.51090×1129.5×1080
Packing Size(W*D*H)mm690*430*540990*630*6301140*1190*1150
Net/Gross Weight(kg)22/2647/55162/185
Performance
Cooling performance(℃)-25/4/22-25/4/224℃/22℃
Temperature Range(℃)-25/4/22-25/4/224℃/22℃
Noise (db)454650
Electrical Data
SensorNTCNTCNTC
Temperature ControllerMicroprocessorMicroprocessorMicroprocessor
DisplayDigital DisplayDigital DisplayDigital Display
CurrentDC 6.5AADC 8ADC12V、DC24V、AC220V
Power Supply220/50Hz、DC12V/24V220/50Hz、DC12V/24VDC12V/14A、DC24V/7A、AC220V/1.5A
Power(W)80W100W160W
Material
ChamberPEPEPE
OuterPEPEPE
InsulationPURFPURFPURF
Alarms
High and Low Temp.YYY
Thermostat FailureYYY
Power FailureYYY
Sensor ErrorYYY
Accessories
BasketBasket around EvaporatorBlood Baskets
Foot//PE foot
Power Failure Backup for Alarm8h8h8h
Remote Alarm PortOptionalOptionalOptional
Temperature RecorderOptionalOptionalOptional



Descripción

PURPOSE

To store and transport blood, serum, plasma, vaccine, reagents and special medicines in medical industry.


Also used as medicines pass box for epidemic prevention station, blood bank, health center, CDC, animal husbandry bureau, army and logistics service, espress company, pharmaceutical factory, genetic engineering.

USER FRIENDLY DESIGN• The whole roll structure prevents collision damage.
• Multilayer stacking.
SECURITY GUARANTEE• Functional alarm system with audible and visible
• Constantly alarm after power off
• Keyboard lockable
• Remote control
FEATURES

• Multi-function with 3 ranges of inner temperature:

 2℃~8℃ used as pharmacy refrigerator,

-10℃ or -25℃ used as deep freezer,

22±2℃ used an incubator

• Multiple voltage used as AC220V or DC12V/24V (Only for blood transporation) power supply of cigarette lighter
• Combined with forced air cooling system and direct cooling system
• Whole roll PE structure

Mobile Car Refrigerator/ Freezer 700L(图1)
