Measure principle steps of the whole Kjeldahl analyzing process are shown as follows (Kjeldahl nitrogen determination principle)

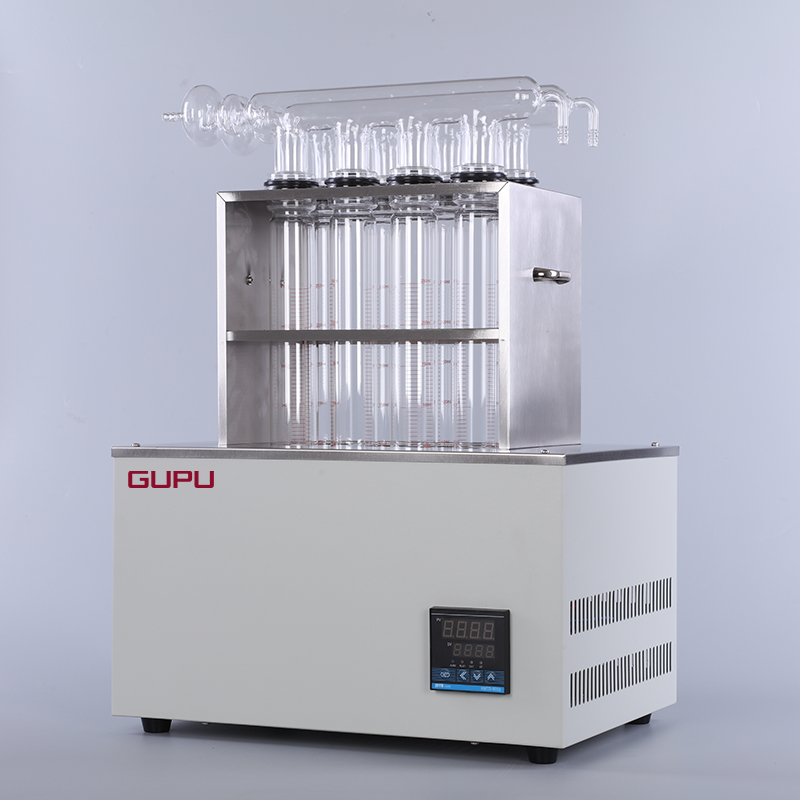

Infrared Digestive Furnace is designed to finish the digestion step.
1. Minimalist design simplify the operation, user-friendly.
2. Multiple protection: over pressure, over current, overheating.
3. Holes with 4, 8, 20 to digest 4, 8 or 20 tubes at the same time.
4. 15-year authorized convincing market approval, stable performance.
5. Material: Shell of prayed steel plate, chamber of corrosion resistant stainless steel
6. Quartz infrared heating pipe, the radiation is primary and the conduction is auxiliary; short heating time, high efficiency
7. Double-shell design, double thermal insulation effect with air thermal insulation layer and aluminum silicate thermal insulation layer.

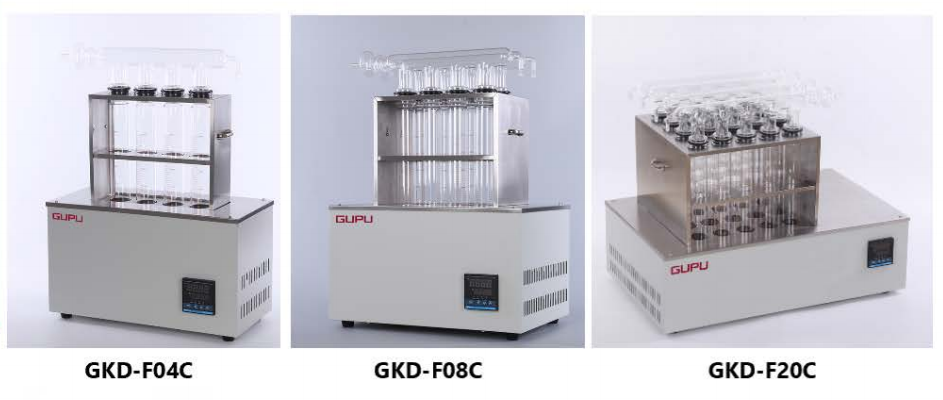

Model | GKD-F04C | GKD-F08C | GKD-F20C |
Sample Holes | 4 | 8 | 20 |
Heating Module Material | Infrared | ||
Temperature Control | Digital Control | ||
Working Mode | Digest 4~20pcs of tubes at the same time, adopt single distillation. | ||
Temperature Range | RT ~600℃ | ||
Temperature Accuracy | ±1℃ | ||
Measurement Range | 0.1mgN~200mgN (mg nitrogen) | ||
Digest Time | 60~90 min/batch (according to sample quantity) | ||
Digestion Tube Capacity | 300ml | ||
Cooling Water Consumption | Digestion: 5L/min (Water temperature is less than 20℃) | ||
Digestion Consumption | 1000W | 1500W | 2500W |
Power Supply | AC220V, 50HZ | ||
Package Size | 700*410*370mm | 610*395*665mm | 765*520*670mm |
Gross Weight | 12.7kg | 16.56kg | 38.9kg |
