Product Gallery
Características

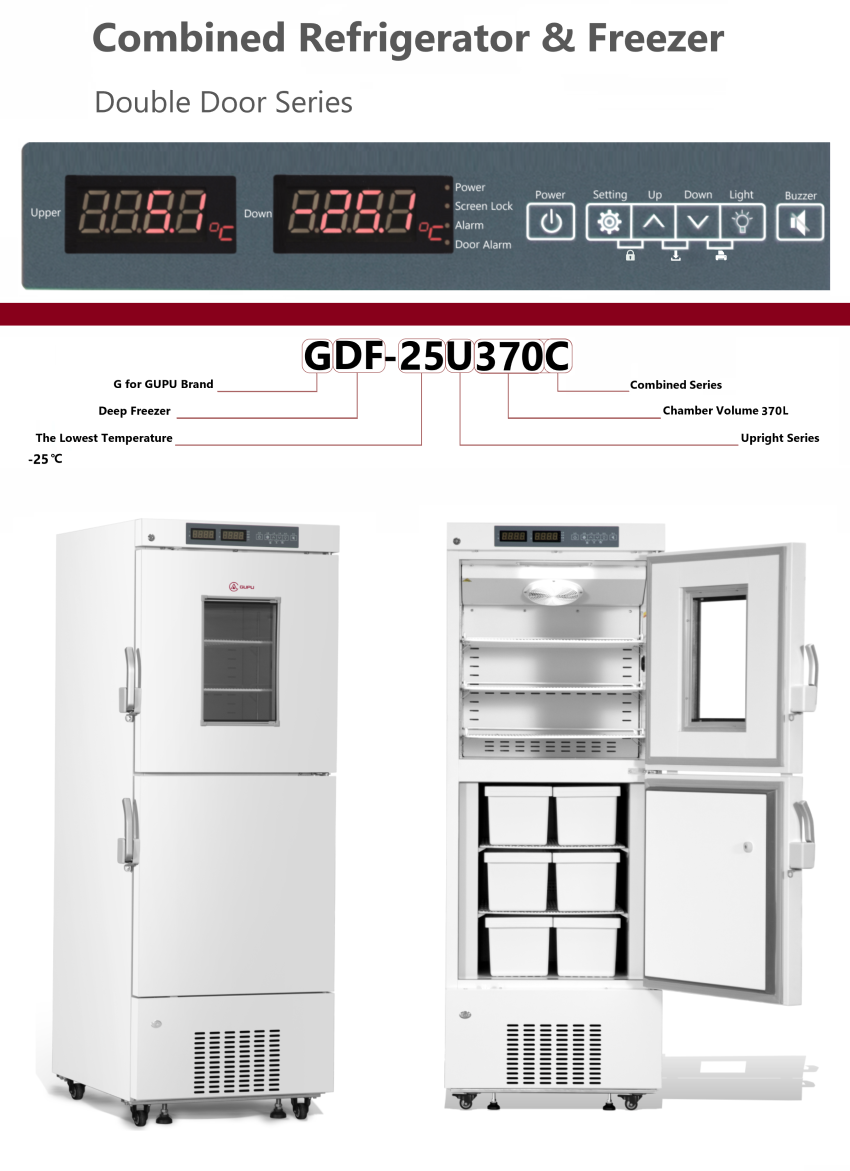

| Model | GDF-25U370C | GDF-40U370C |
| Specification | ||
| Volume (L/cu.ft.) | R:185/6.53 F:185/6.53 | R:185/6.53 F:185/6.53 |
| Shelves or Drawers Qty (height adjustable) | Shelves*3 Drawers*6 | |
| Chamber Size (mm) | R:580*626*625 F:466/636*625 | R:580*626*625 F:466/636*625 |
| Outer Size (mm) | 730*830*1880 | 730*830*1880 |
| Package Size (mm) | 775*920*1990 | 775*920*1990 |
| Net Weight/Gross Weight (kg) | 137/166 | 137/166 |
| CBM | 1.42 | 1.42 |
| 20GP/40GP/40HQ | 14/39/39 | 14/39/39 |
| Performance | ||
| Temperature Control Range | R: 2~8℃ F: -10～-25℃ | R: 2~8℃ F: -20～-40℃ |
| Ambient Temperature | SN (10~32℃) | SN (10~32℃) |
| Control | ||
| Controller | Microprocessor | |
| Display | Dual Independent Digital Display | |
| Temperature Sensor | NTC | |
| Refrigeration | ||
| Refrigeration System | Direct cooling | |
| Compressors | CHINA BRAND/2 | |
| Refrigerant | R600a & R290 | |
| Insulation Material and Thickness | PURF | |
| Construction | ||
| Outer Material | SPCC Painted Steel | |
| Chamber Material | SPCC Painted Steel | |
| Outer Door | Foam, sealing joint strip | |
| Outer Door Lock | Safety door lock | |
| Test Port Qty & Diameter | 2/25MM | |
| Casters | 4(2 caster with brake) | |
| Audiable and Visual Alarms | ||
| High & Low Temperature | Y | |
| Extremely High Ambient | Y | |
| Thermostat Failure | Y | |
| Sensor Error | Y | |
| Door Open | Y | |
| Romote Alarm | Y | |
| Power Failure | Y | |
| Abnormal Voltage | / | |
| Low Battery | / | |
| Condenser Clean | / | |
| Electrical and Noise Level | ||
| Power Supply | 220V/50/60HZ, 110V/60Hz | |
| Rated Current(A) | 300 | |
| Input Power | 2.37 | |
| Power Consumption (KWh/24hr) | 3.03 | |
| Noise Level | 50 | |
| Options | ||
| USB Port | Standard | |
| Data Logger | 8h | |
| Power Failure Backup Battery | Optional | |
| CO2 or LN2 Back-up | Optional | |
