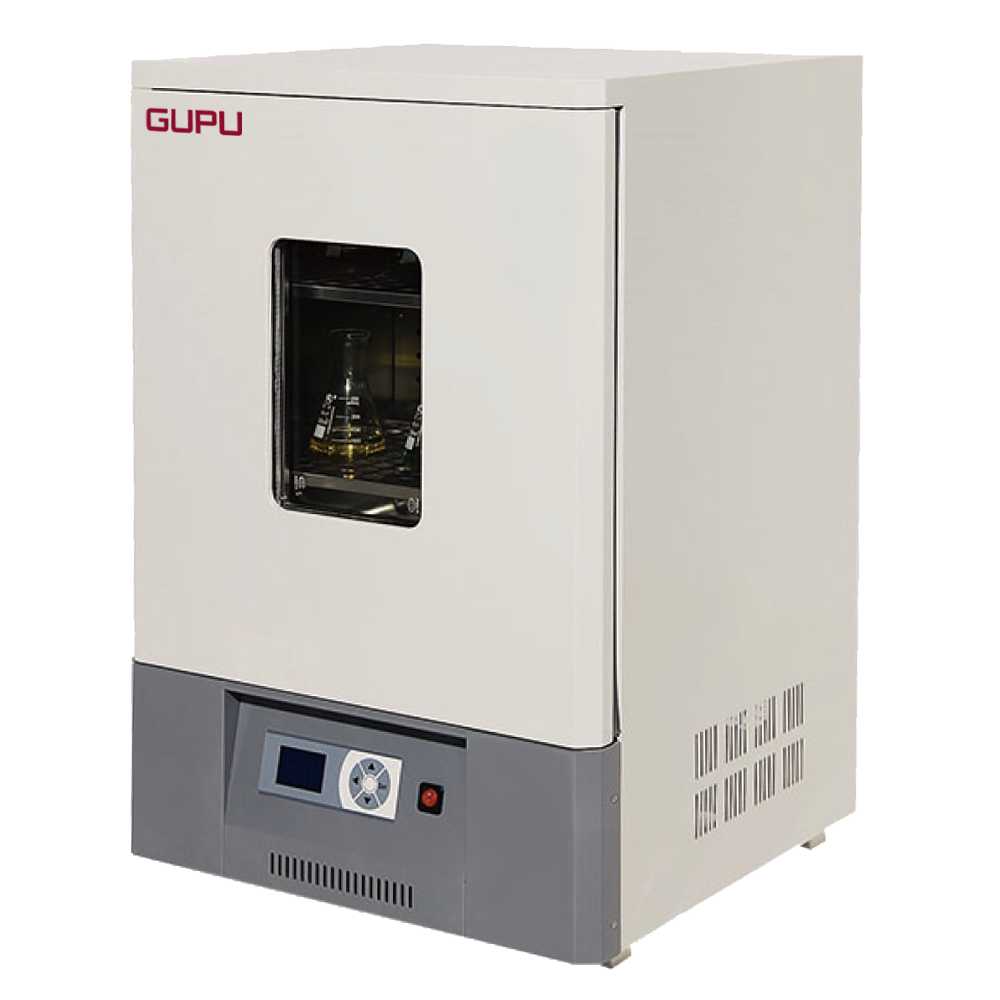

Refrigerated Incubator/BOD Incubator 70L/100L
Energy saving design
●New synthetic silica gel seal provides exceptional sealing with heat loss prevention and 25% energy saving
●According to environment, auto adjustment to achieve the optimal heating mode and reduce energy consumption.
●High efficiency and energy saving compressor, intelligent instrument control compression start stop, stable temperature control, low power consumption
Internal circulation system
●German big leaf wheel l turbine suction fan and clapboard with laser hollowed heat dissipating holes, give higher ventilation and better temperature uniformity.
●Back suction and vertical air supply at the bottom air circulation system.
Humanized Design
●30 programmable procedures, including control over temperature and time 1-9999 minutes .
●Menu operation interface ensures quick setting of temperature and time.
●Display of "END" with buzz reminder.
●Radiable heating ensures temperature uniformity.
●Chinese and English menus available.
●Power off memory
●℃/℉convertible
Security function
●Refrigerant: R134a environment-friendly, non flammable, non-explosive, non-toxic, non irritating and non corrosive.
●Electric leakage protection device ensures the safety of the operator and other equipment in the laboratory.
●Limited temperature controlled audible and visual alarm system with auto-stop if temperature exceeds
●Self diagnostic function: display fault information and facilitate troubleshooting.
●High quality thickened aluminum silicate floss insulation protects operator.
●Corosion-resistant stainless steel heating pipe
●Alarm temperature is adjustable
Model | GIN70B | GIN100B | GIN150B | GIN250B | GIN350B | GIN450B | GIN200BS |
Volume (L/cu.ft.) | 70/ 2.47 | 100/ 3.53 | 150/ 5.30 | 250/ 8.83 | 350/ 12.4 | 450/ 15.9 | 200/ 7.06 |
Plate Qty (Height Adjustable) | 2 | 2 | 3 | 3 | 3 | 4 | 4 |
Load Capacity/Plate | 10kg | ||||||
Chamber Size (mm) | 450*350*450 | 510*380*510 | 505*380*800 | 550*450*1050 | 550*550*1150 | 700*550*1200 | 530*400*530 530*400*500 |
Outer Size (mm) | 550*550*890 | 610*580*940 | 630*600*1450 | 680*660*1710 | 680*770*1870 | 830*750*1860 | 680*630*1820 |
Package Size (mm) | 680*680*1050 | 740*710*1140 | 760*710*1610 | 790*770*1860 | 810*900*2020 | 880*950*2020 | 810*720*1970 |
Net Weight/Gross Weight (kg) | 55/60 | 80/100 | 100/120 | 120/150 | 140/160 | 160/180 | 120/150 |
CBM | |||||||
Performance | |||||||
Temperature Control Range | 0 ~ 60℃ | RT+5 ~65℃(UP) 0~60℃(Down) | |||||
Temperature Accuracy | 0.1℃ | ||||||
Temperature Fluctuation | ±0.5℃ | ||||||
Ambient Temperature | 4 ~ 35℃ | ||||||
Timming Range | 1~9999min | ||||||
Control | |||||||
Display | LCD Display | ||||||
Controller | Microprocessor | ||||||
Sensor | PID | ||||||
Heating Pipe | Corrosion-resistant 304 stainless steel heating tube | ||||||
Construction | |||||||
Outer Material | Laser-cutting cold-rolled steel with anti-static spraying | ||||||
Chamber Material | High quality brushed stainless steel | ||||||
Plate | One-time formed 304 stainless steel entire plate, no welding spot; Load-bearing beam at the bottom, gives strong bearing capacity. | ||||||
Insulation | High quality polyurethane six-side insulation | ||||||
Inner Door | Toughened glass door with lock and magnetic rubber ring | ||||||
Universal Casters with Brake | / | / | Yes | ||||
BOD Scoket | Standard | ||||||
Electrical and Noise Level | |||||||
Power Supply | 220V/50HZ | ||||||
Power Consumption | 660W | 680W | 900W | 1000W | 1100W | 1600W | 900W |
Power Code | 0.75² | 0.75² | 1² | 1² | 1.5² | 1.5² | 1² |
Noise Level | 52 | 52 | 52 | 52 | 52 | 52 | 52 |
ACCESSORIES | |||||||
Standard | BOD Socket,Electric Leakage Protection | ||||||
Options | Program controller with up to 30 segments,Independent temperature limiting controller,Test hole,BOD socket,Printer or RS485 controller |
